.The next step is to short circuit the terminals and find the short circuit current for the circuit shown in Figure 7. Note that the current is in the same direction as the falling voltage at the terminal. Networks Theorem-Next slide Current i sc can be found if v 2 is known. By using the bottom right node as the reference node, the equationfor v 2 becomes By solving the above equation, v 2 = 16 V. Therefore, the short circuit current i sc is The Thevenin resistance R Th is Figure 8 shows the Thevenin equivalent circuit for the Figure 6. Networks Theorem-Next slide Networks Theorem-Next slide Norton’s Theorem.The configuration of circuit connection can be changed to make the calculation easier.

1. Superposition Theorem Ppt For Mac Free
2. Example Of Superposition Theorem

There are TWO type of transformations which are Delta (Δ) to star connection (U) and vice versa. Figure 12 Delta and Star Circuit Connection Networks Theorem-Next slide Delta (Δ) to star (Y) transformation: Networks Theorem-Next slide Star (Y) to Delta (D) transformation: Networks Theorem-Next slide Objectives.

LCA Lab Superposition Theorem A Presentation by Bilal Sarwar (B-17707) Linear Circuits  A linear circuit is one whose output is directly proportional to its input.  Linear circuits obey properties of homogeneity 2 Superposition Principle Because the circuit is linear we can find the response of the circuit to each source acting alone, and then add them up to find the response of the circuit to all sources acting together.

Superposition Theorem Ppt For Mac Free

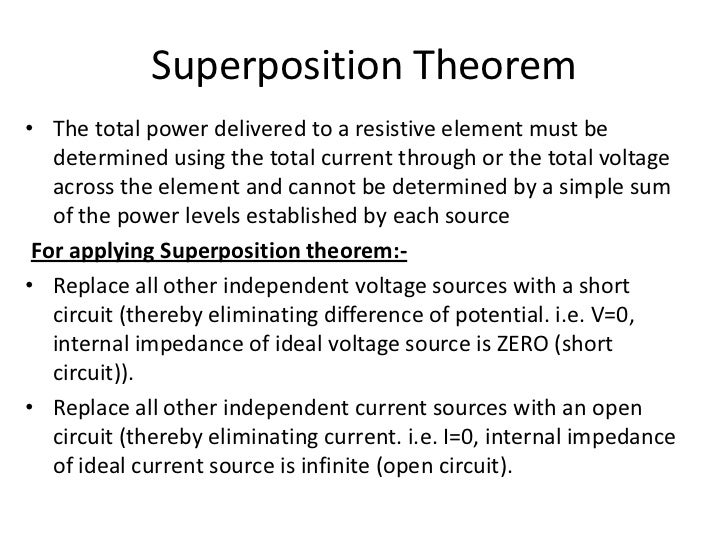

This is known as the superposition principle. The superposition principle states that the voltage across (or the current through) an element in a linear circuit is the algebraic sum of the voltages across (or currents through) that element due to each independent source acting alone. 3 Turning sources off Current source: a i  is We replace it by a current source where is  0 is An open-circuit b Voltage source: + DC vs v  vs We replace it by a voltage source where i vs  0 - An short-circuit 4 Removing the effect of ideal sources Voltage source is replaced by a S/C Removing the effect of practical sources 5 Current source is replaced by a O/C Steps in Applying the Superposition Principle 1. Turn off all independent sources except one. Find the output (voltage or current) due to the active source. Repeat step 1 for each of the other independent sources.

Find the total output by adding algebraically all of the results found in steps 1 & 2 above. In some cases, but certainly not all, superposition can simplify the analysis.

Example Of Superposition Theorem

6 Example: Thank You For Listening.
